HiTEC® 523

Anti-wear Hydraulic Additive Package
Current region availability Asia Pacific Europe, Middle East, Africa, India (EMEAI) Latin America
To inquire about availability in other regions or to find out more contact your Afton Representative.
Download Product Data Sheet Request Safety Data Sheet

Key Performance Benefits

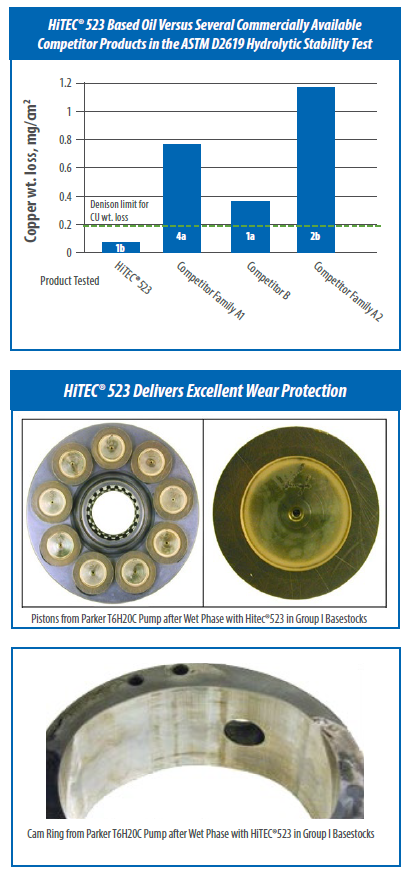

  • Denison HF-0, HF-1, HF-2 approval based on performance in the T6H20C hybrid pump test
  • Meets the requirements of DIN 51524 part II, ISO 11158 HM, SAE MS 1004 HM and ASTM D6158 HM
  • FZG A/8.3/90 load stage 10 Pass
  • Filterability in the presence of water
  • Protection of yellow metals in the presence of water
  • Robust oxidation, rust and corrosion protection
  • Approved against Cincinnati Machine P-68, P-69 and P-70 specifications
  • Excellent wear protection, demonstrated by performance in the ISO 20763 (Conestoga) vane pump test

Application

HiTEC® 523 additive is a low zinc antiwear hydraulic package meeting several requirements. HiTEC® 523F is also available and contains a defoamant system which is designed to work in Group I & II base oils.

Handling Information

Max Handling Temp: 75°C
Shelf Life: 24 months @ ambient temperature

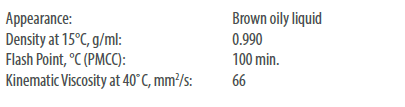

Typical Characteristics

Recommended Dosage

The recommended dosage for HiTEC® 523 additive is 0.6% wt. HiTEC® 523F also available for improved anti-foam performance. Please contact your Afton Chemical representative for specific recommendations.
